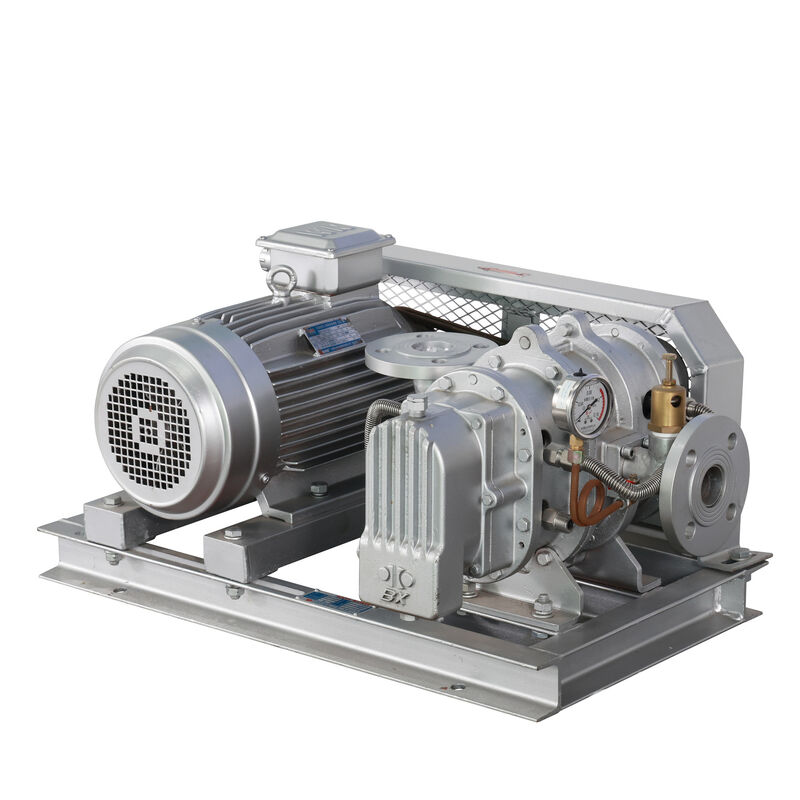

BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower

BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower

BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower
BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower
BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower
Detalhes do produto:
Lugar de origem: China
Marca: BK
Certificação: ISO9001
Número do modelo: BX100
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Preço: Negociável
Detalhes da embalagem: Caixa de madeira exportada
Tempo de entrega: 25 dias úteis
Habilidade da fonte: 500 conjuntos/mês
Contato
Descrição de produto detalhada
Modelo: BX100 Porta DIA.: 100 (4")
Velocidade: 850-1850 RMP Fluxo de ar: 3,18-11,15 m³/min
Potência do eixo: 1,50-15,74 kW Pressão: 10-70 KPa
Material do impulsor: Aço inoxidável Aplicativos: Tratamento térmico, limpeza de tubo, gás especial
Vantagens: Instalação fácil, controle inteligente, baixo ruído, vibração pequena Potência do motor: 5.5-22kw
Peso: 290kg Boltos da fundação: 6-M16*300

BX100 4'' 3.18-11.15 m³/min Stainless Steel Roots Blower

1,The main components of BX Roots blower are precisely machined from stainless steel.

2,Key components are processed by machining center at one time,and the dimensional tolerance is accurate to ensure the processing accuracy and the operation stability of the blower under different working conditions.

3,The impeller is made of stainless steel.The special strength and rigidity make the impeller meet the conditions of high speed continuous load without fatigue and deformation.

4,The sealing structure adopts a double mechanical sealing structure and a water cooling sealing system to achieve the reliability of the sealing under different harsh conditions, thus ensuring the leak-free operation of BX Roots blower.



BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower 0







Product Parameters



Performance Parameters Sheet:

Type
(MM)Port Dia		 Speed Inlet airflow(m³／min) and shaft power(KW) at different conditions
0.1kgf/c㎡ 0.2kgf/c㎡ 0.3kgf/c㎡ 0.4kgf/c㎡ 0.5kgf/c㎡ 0.6kgf/c㎡ 0.7kgf/c㎡
1000mmH₂O 2000mmH₂O 3000mmH₂O 4000mmH₂O 5000mmH₂O 6000mmH₂O 7000mmH₂O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa
rpm m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW
BX100 100(4") 850 4.60 1.50 4.19 2.52 3.87 3.82 3.61 4.39 3.38 5.40 3.18 6.41
1000 5.58 1.77 5.17 2.97 4.86 4.50 4.60 5.17 4.37 6.35 4.16 7.54
1150 6.56 2.03 6.16 3.41 5.84 5.17 5.58 5.94 5.35 7.31 5.15 8.67 4.95 9.78
1250 7.22 2.21 6.81 3.71 6.50 5.62 6.23 6.46 6.01 7.94 5.80 9.42 5.61 10.63
1350 7.87 2.39 7.47 4.01 7.15 6.07 6.89 6.97 6.66 8.58 6.46 10.18 6.26 11.48
1500 8.86 2.65 8.45 4.45 8.14 6.75 7.87 7.75 7.64 9.53 7.44 11.31 7.24 12.76
1600 9.51 2.83 9.11 4.75 8.79 7.20 8.53 8.27 8.30 10.16 8.10 12.06 7.90 13.61
1750 10.50 3.09 10.09 5.19 9.78 7.87 9.51 9.04 9.28 11.12 9.08 13.19 8.88 14.89
1850 11.15 3.27 10.75 5.49 10.43 8.32 10.17 9.56 9.94 11.75 9.74 13.95 9.54 15.74




Outline Dimension


BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower 1BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower 2


Outline Dimension Sheet


Model Port Dia.(DN) Motor Power (kw) A B B1 C D E F G H R I J K L M N P Foundation Bolts Weight(kg)
BX100 4" 5.5~22KW 1100 800 400 150 322 676 357 395 1375 155 18 332 232 600 150 900 18 6-M16x300 290


Sample Use
BX100 4'' 3.18-11.74 m³/min 0.1-0.7 kgf/cm² BK Series Stainless Steel Roots Blower 3



FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.



Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.



Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.



Q4: What is your warranty?
Our warranty is 12 months after received the machine.



Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.



Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.



Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.



Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
