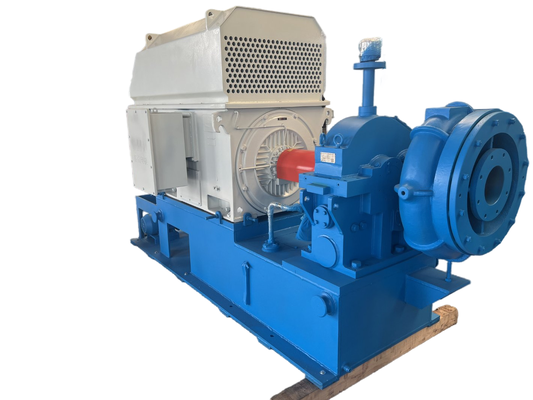

50-100 KPa Pressure,500m³/min Airflow,energy-saving ,small area,waste water treatment aeration centrifugal blowerfan

Detalhes do produto:

Lugar de origem:	China
Marca:	BK
Certificação:	ISO9001/ISO14001
Número do modelo:	GS500-(1,5-2,0)

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Negociável
Detalhes da embalagem:	Caixa de madeira padrão de exportação
Tempo de entrega:	20-40 dias úteis, depende do valor e especificação do pedido
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	10 conjuntos por mês

Contato

Descrição de produto detalhada

Capacidade do ar:	500m³/min	Pressão diferencial de descarga:	50-100Kpa
Potência do motor:	560/630/710/800/900/1000KW	Conteúdo de poeira e:	<=10mg/m³
TEM.:	20 °C	Motor Especial:	Nível do mar>=1000m

50-100 KPa Pressure,500m³/min Airflow,energy-saving waste water treatment aeration centrifugal blowerfan

About GS

GS series single-stage high-speed centrifugal blower is specially designed for waste water treatment aeration.Meanwhile,it is available for

medium,such as air,nitrogen,nitrogen dioxide and other non-corrosive gases.

Gs blower is characterized by wide applicability, significant energy saving,small area and easy installation,operation and maintenance.

Specifications

型号 Model	压力 Pressure	风量 Airflow	功率 Power
	Kpa	m³/min	KW
GS500-1.5	50	500	500
GS500-1.6	60	500	560
GS500-1.7	70	500	710
GS500-1.8	80	500	710
GS500-1.9	90	450	800
GS500-2.0	100	450	900

Remarks:
1.Discharge pressure is designed to 198Kpa(A), the application scope :145-198 Kpa (A) or the pressure ratio ε is 1 . 5 ≤ε≤1 . 9 6 ;
2.Dust content and other solid impurities ≤10mg/m3;
3.The motor must be special one when the sea level is higher than 1000m;
4.It is not suitable for the inlet temperature over 60℃ or outlet temperature over 120℃;
5.The airflow in the above sheet are the value in the condition of 20℃ and 1 atm;
6.Please consult our technical department for the capacity not showed on the catalogue.
7.For model selection of single-stage high-speed centrifugal vacuum pump, please contact the Technical Department of our company.

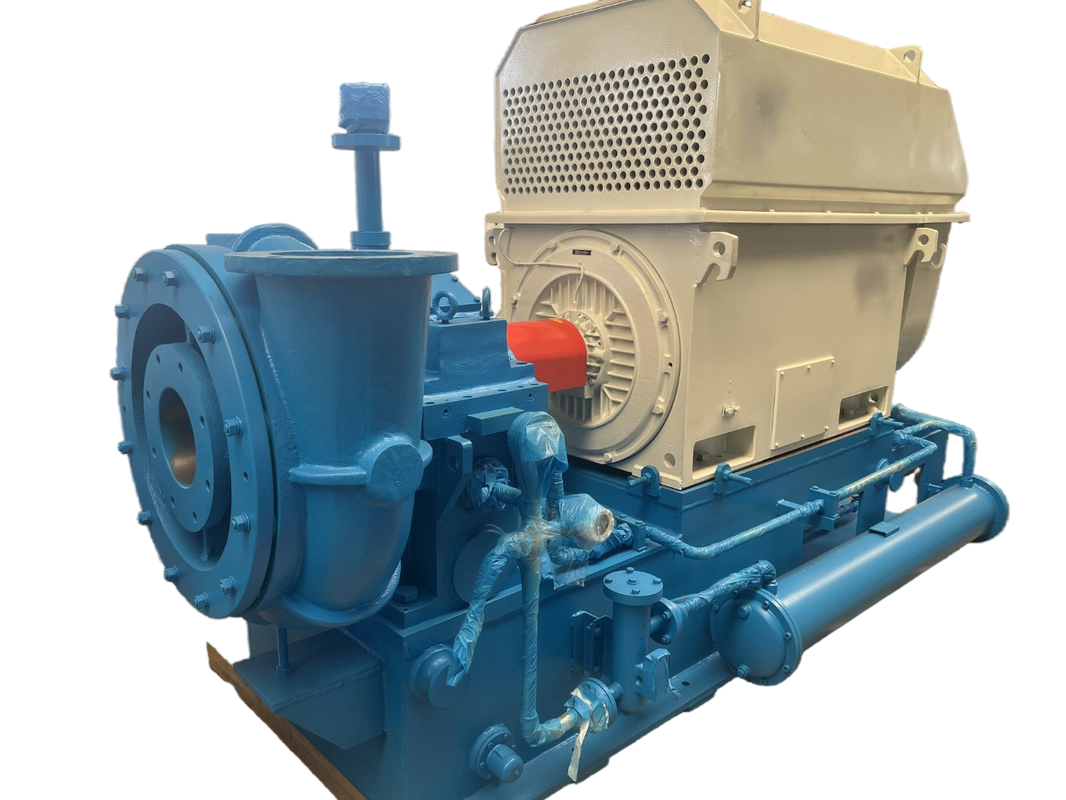

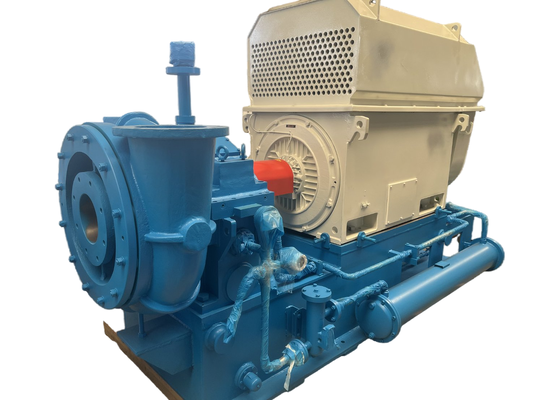

Blower structure

Gs series centrifugal blower features single-stage cantilever,axial inlet and radical discharge structure. Air comes into the suction pipe and the

inlet guide vane device from the inlet filter setting.Main driving motor is connected with the coupling and the step-up box.When start,
the step-up gear drive the ternary mixed semi-open impeller to make gas for power,and the gas discharge out through vane-less diffuser and

volute chamber.

50-100 KPa Pressure,500m³/min Airflow,energy-saving ,small area,waste water treatment aeration centrifugal blowerfan 0

GS Series Blower Performance Curve
GS Series centrifugal blower featurers single-stage cantilever,axial inlet and radical discharge structure. Air comes into the suction pipe and the

inlet guide vane device from the inlet setting. Main driving motor is connected with the coupling and the step-up box. When start, the step-up gear

drive the ternary mixed semi-open impeller to make gas for power, and the gas discharge out through vane-less diffuser and volute chamber.
50-100 KPa Pressure,500m³/min Airflow,energy-saving ,small area,waste water treatment aeration centrifugal blowerfan 1

Blower conrol sustem

High grade automation,and reliable

Using self-turing intelligent instrument or programmable logic control (PLC) and man-machine conversation interface for the whole runing process, which can realize adjusting airflow automatic/ manual.GS series blower control system includes: blower,step-up box,motor,lubricant station,inlet

filter,air relief adjustable valve,shaft vibration ,anti-surge system,etc.It takes didital display touch screen control panel,and can process the full control and regulation through the corresponding software.Meanwhile, it can record various failures and dagnose the failures intelligently as well as

suggesting the cause of failures.

The pivotal components for the automatic control system are imported ones for ensuring the accuracy, reliability and easy maintenance of the control system.

Remote monitor

Control system can transmit the measured data through internet or GPRS emitter. Customers can login in our website(Http://www.bk.com.cn) to monitor the running condition; meanwhile, our company will monitor it periodically and send the important monitor point or abnormal information to

customers via short message or mail. This remote monitor system is a further guarantee for the safe running of blower.

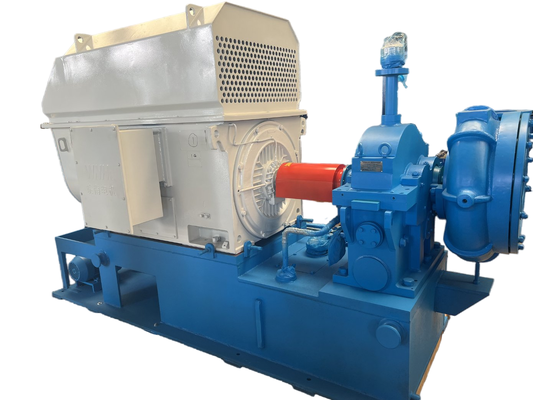

GS Series Blower Projects

50-100 KPa Pressure,500m³/min Airflow,energy-saving ,small area,waste water treatment aeration centrifugal blowerfan 2
